Impale Clip 8-Prong (Glue-Up Aid)

Impale Clip 8-Prong (Glue-Up Aid)

Impale Clip 8-Prong (Glue-Up Aid)

Impale Clip 8 Prong

8 pronged impale clips are the standard and most economical mounting for Essi acoustical panels under 3" in thickness. These are only to be used as a glue-up aid. (SEE INSTALLATION TAB AT TOP/BOTTOM OF PAGE FOR MORE INFO)

Impale Clip 4-Prong (Glue-Up Aid)

Impale Clip 8-Prong (Glue-Up Aid)

Impale Clip 8-Prong (Glue-Up Aid)

Impale Clip 4 Prong

4 pronged impale clips are the standard and most economical mounting for Essi acoustical panels 3" in thickness or greater. These are only to be used as a glue-up aid. (SEE INSTALLATION TAB AT TOP/BOTTOM OF PAGE FOR MORE INFO)

Impale Clip 2-Prong (Glue-Up Aid)

Impale Clip 8-Prong (Glue-Up Aid)

Impale Clip 2-Prong (Glue-Up Aid)

Impale Clip 2 Prong

2 Pronged impale clips are used for the Essi Model W-105 Tackable Mineral Board Wall Panel. These are only to be used as a glue-up aid. (SEE INSTALLATION TAB AT TOP/BOTTOM OF PAGE FOR MORE INFO)

2 Part Z-Clip (Removable)

Z-Clip & Track (Removable)

Impale Clip 2-Prong (Glue-Up Aid)

Z-Clip

Z-Clips are the most economical choice for areas/projects when panels are required to be removable. (SEE INSTALLATION TAB AT TOP/BOTTOM OF PAGE FOR MORE INFO)

Z-Clip & Track (Removable)

Z-Clip & Track (Removable)

Z-Clip & Track (Removable)

Z-Clip & Track mounting is ideal for larger projects when panels need to be removable or when there are multiple panels aligned with no gaps between panels. 1 Z-Clip is affixed to the back of the panel and additional Z-Track is sent with the order to be affixed to the wall. This mounting method is commonly used to save labor costs/install time when hanging panels.

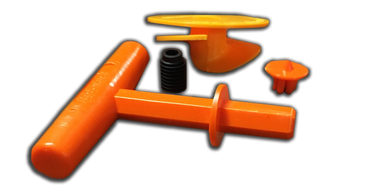

Rotofast Snap-On

Z-Clip & Track (Removable)

Z-Clip & Track (Removable)

Each Rotofast Snap-on anchor pack comes with 50 anchors & black ratchets, 6 reusable marking plugs and one installation tool. We can also provide this product in various quantities upon request. (SEE INSTALLATION TAB AT TOP/BOTTOM OF PAGE FOR MORE INFO)

Rotofast Cloud

Gripple Hanging Kit

Galvanized Hanger

Rotofast Cloud anchors are a great option for suspending acoustical panels in the air. Rotofast Cloud Anchors are screwed into the exposed fiberglass on the back of the panel, Mounting cable is then attached to the ring on the top of the anchor. Gripple Hanging Kits pair well with this mounting method.

Galvanized Hanger

Gripple Hanging Kit

Galvanized Hanger

Galvanized hangers are used for the Essi Model B-206 Ceiling Baffle. This hardware runs from the bottom of the panel all the way through the core of the panel and protrudes through the top of the panel. The top edge of the hanger has a hole punched in the middle of the hanger to allow for suspension. Gripple Hanging Kits pair well with this mounting method.

Gripple Hanging Kit

Gripple Hanging Kit

Gripple Hanging Kit

Each Gripple Hanging Kit comes with 10 Feet of Cable and 1 adjustable angel that can be adjusted to any desired length. Each cable has a 33 lb. safe working load. The Open end of Cable is pushed the the adjustabe angel hardware. The Adjustable angel clips through either a rotofast cloud anchor or Metal flatstock hanger. The opposite end of the cable is looped and secured around substrate at the ceiling level. (SEE INSTALLATION TAB AT TOP/BOTTOM OF PAGE FOR MORE INFO)
